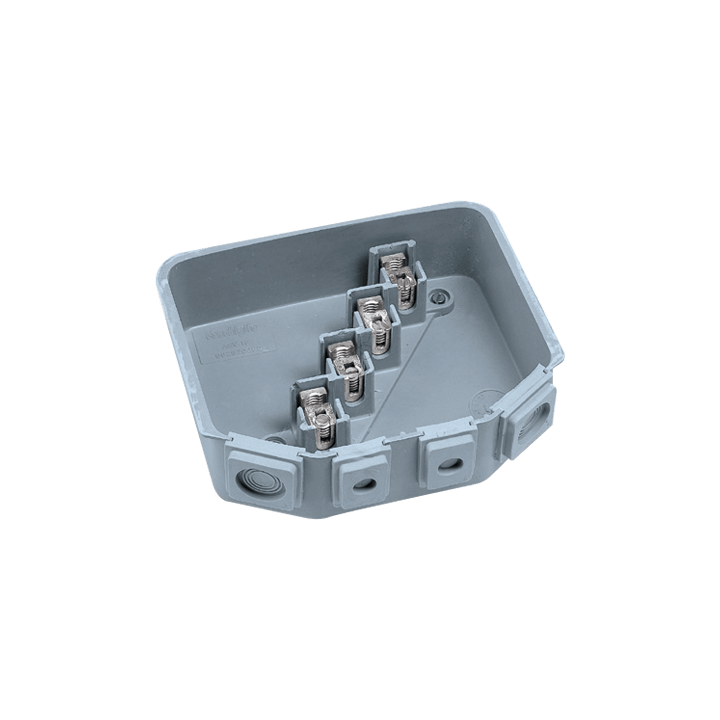

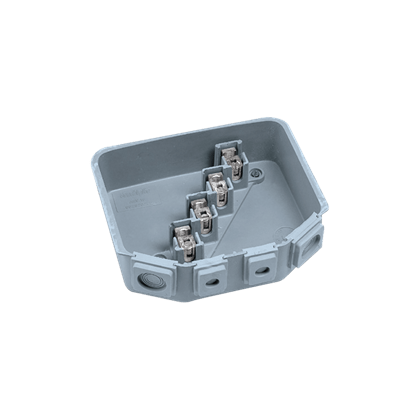

Derivation box - Fiberglass/equipped - 173x200

CODE 023160104
SIGN ASV16/A

Materials Box and cover moulded in SMC (fiberglass). Grey RAL 7040 color. Characteristics For outdoor installation on poles with bracket pre-engineered for 1/2' (ASV6) and 3/4' (ASV 16) BAND-IT tape. Can be wall mounted, generally under the roof eaves or other places that cannot be accessed without adequate means, using a bracket to couple to a walled-in shank. Flat fairleads Pmolded in polyvinyl chloride flexible. Boxes as described above complete with 2 or 4 pole nodal terminal blocks for ASV6 - ASV16 and quadripolar sectioning terminal block (ASV95). Protection degree IP 43 in compliance with CEI EN 60529; IK 08 according to CEI EN 62262 for ASV6 and ASV16 types; IK10 according to CEI EN 62262 for ASV95 type. Applications/Installations For connections and shunts from overhead lines with uni-multipolar cables.

Characteristics table
