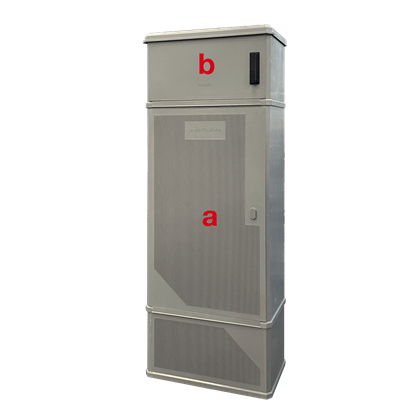

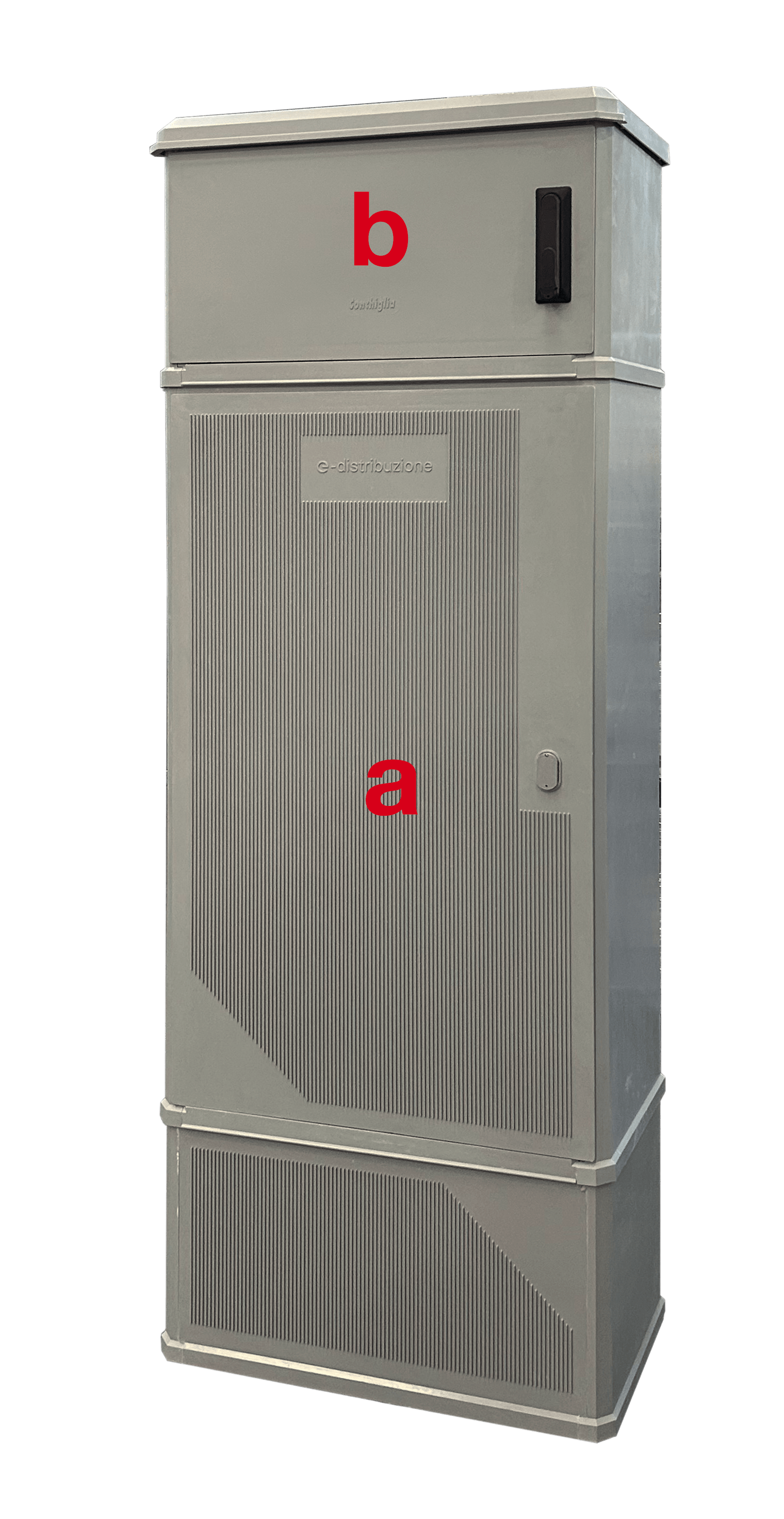

Enclosure for measuring group 30/400KW with top unit - 699x1579x384

CODE 073300048
SIGN CVBP/RZT/S

Enclosure made of fiberglass - grey RAL 7040 color. Double lock closure type unified according Enel DS 4541. Complete with frame for floor installation, plinth h = 381mm and top unit. Protection degree IP34D according to EN 60529, IK10 according to IEC 62208. Suitable for installation of electronic meters: - Max N. 1 three phase integrated type GTWS for powers from 30 to 400kW - Max N. 1 three phase power from 30 to 400kW type GISS; fixing with No. 1 overall TA BT (serial 530016 - 530017)

DOWNLOAD CAD
Download
Download PDF
Characteristics table
Loading
Technical drawings
