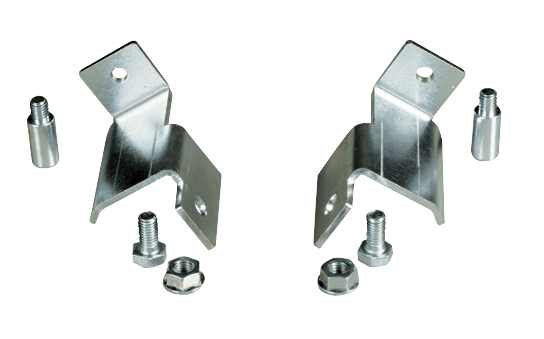

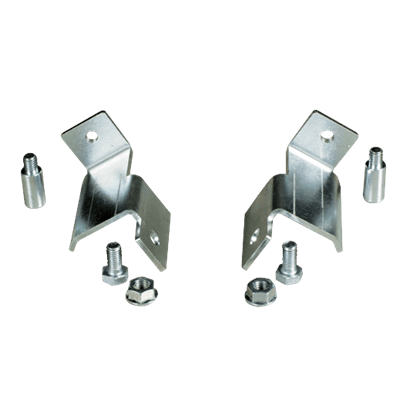

Inward installation kit for front entry mounting panels

CODE RZAE06
ETIM CLASS EC002624

Inward installation kit for front entry mounting panels. Manufactured of Sendzimir galvanized steel. Allows the inward panel installation placing it in the utmost position flush with the uprights. Pack of 2 pieces complete with fasteners. To be mounted in the lower part of the enclosure in substitution of the standard supports provided with the panel. Max. distance between the door and the mounting panel is equal to P – 57. For example, in case of an enclosure with the depth of 600 mm, the maximum distance between the door and the mounting panel is 600 – 57 = 543 mm.

DOWNLOAD CAD
Download
Download PDF
Characteristics table
