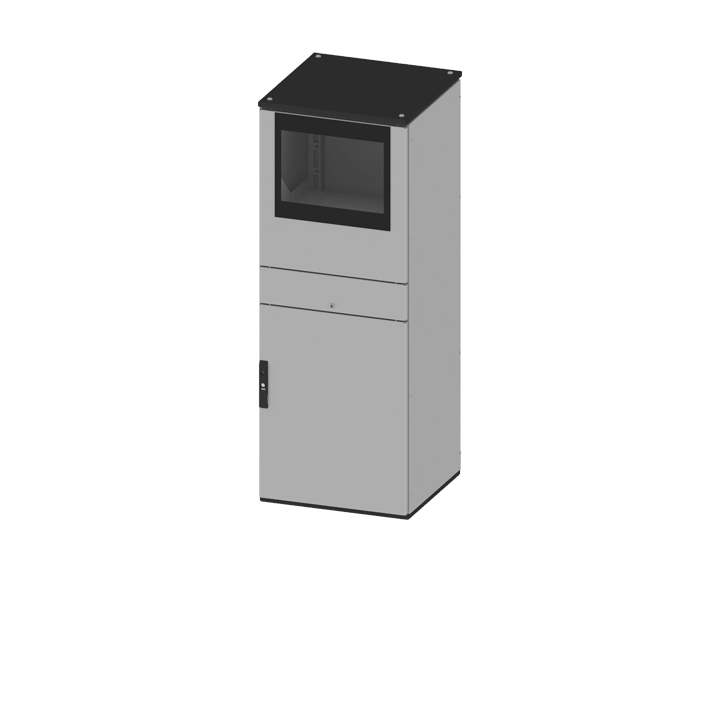

CQEC PC Enclosure with screen-printed glazed door 2000x600x800

CODE R5CQEC2068
ETIM CLASS EC002502

CQEC PC Enclosure with screen-printed glazed door, assembled of a closed profile manufactured of 15/10 thick steel, painted textured RAL 7035. Roof and base, manufactured of 15/10 thick steel, painted textured RAL 7011, removable. The upper door is provided with a glazed window protected by 4 mm thick screen-printed safety glass. The enclosure includes: display support tray, drawer for keyboard and mouse, lower door and rear door. Mechanical resistance degree as per IEC EN 62208: IK09. Protection degree: IP55 (referred to enclosures complete with side panels).

DOWNLOAD CAD
Download
Download PDF
Characteristics table
