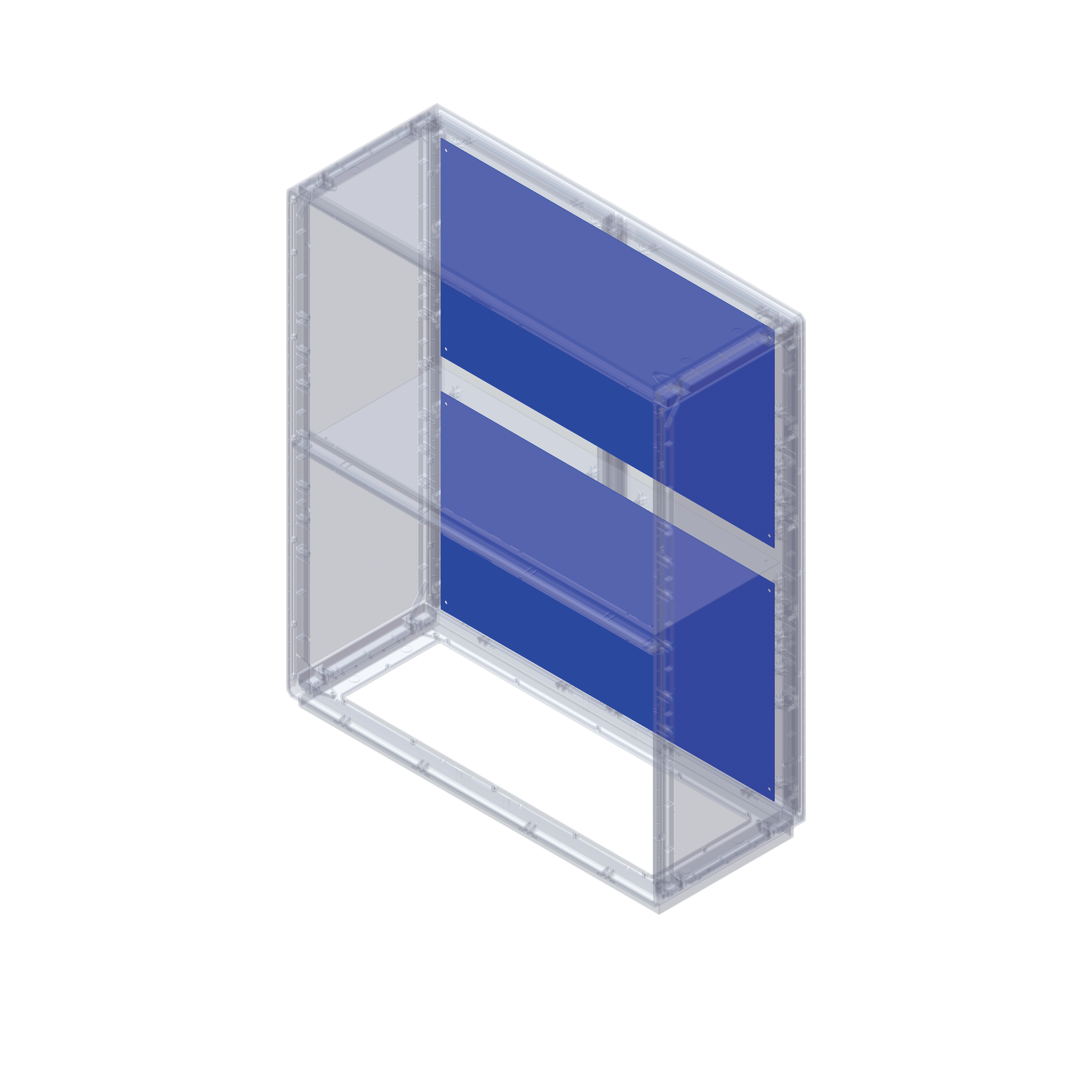

Mounting plate - Grafi12 - compartment h=433 / steel

CODE 095771028
SIGN G12/2/PA

Characteristics Can be applied to the bottom of the enclosure using special threaded inserts with M6x20 stud bolts or in conjunction with switchgear risers or racks using the dedicated fixing brackets. Pre-galvanized steel - thickness 2 mm. To be chosen according to the useful height of the single compartment.

DOWNLOAD CAD
Download
Download PDF
Characteristics table
Loading
Catalogues
Technical drawings
