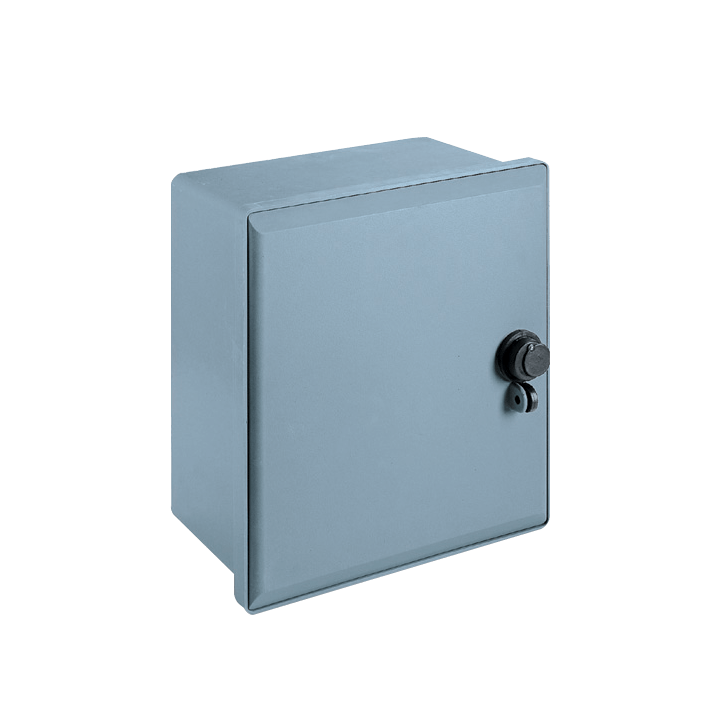

Measuring group box GTI/DS4552

CODE 075170001
SIGN CPTI/C

Materials SMC moulded (fibreglass) - grey RAL 7040 color. Characteristics Hinged cover closed by means of locking mechanism that can be opened with triangular key and provision for padlock. Internal aeration obtained by means of labyrinth on cover perimeter. Protection degree IP43 in compliance with CEI EN 60529; IK 10 according to CEI EN 62262. Executions - WL = without lock (to be ordered separately). Suitable for direct mounting of electronic meters: - Max. 1 meter unit integrated single-phase type GTI-GTY - Max n°2 single-phase power up to 10Kw type GEM and GISM. Fixing with n°2 base T5 A2 (serial 286103). - Max n°1 single-phase + n°1 three phase power up to 10Kw (single-phase) type GEM and GISM E 20Kw (Three phase) type GET2A and GIST. Fixing with base T5 A2 (serial 286103) and n°1 base T5 A4 (serial 286142). - Max n°2 three phase for power up to 16.5Kw type GET2A, up to 30Kw type GIST. Fixing with n°2 base T5 A4 (serial 286142).

DOWNLOAD CAD
Download
Download PDF
Characteristics table
Loading
Catalogues
Technical drawings
Certifications
