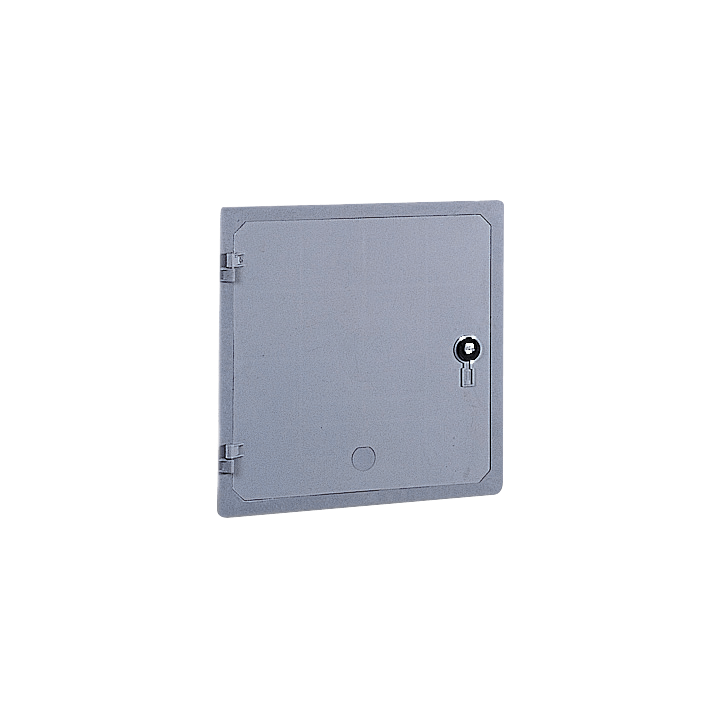

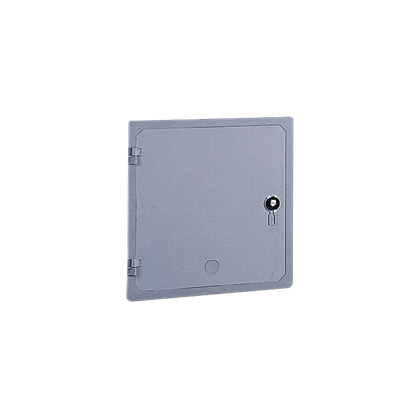

Masonry niches door 550x550 - IP43

CODE 076500107
SIGN TPVE/50

Materials Door and frame moulded in SMC (fiberglass) - grey RAL 7040 color. Characteristics Hinged door complete 3 points latch operated by key. Opening angle over 90°. Ventilation labyrinth around door perimeter. Complete with galvanized and passivated door fixing supports to wall in or fix with expansion plugs. Types TPV/71 - TPV/74 - TPV/75 and derived versions complete with locks with retracting handle accessible by means of safety lock and Y21 cipher. Granite colours available on request: light grey - dark grey - antique pink. Protection degree IP 43 in compliance with CEI EN 60529 and IK 10 according to CEI EN 50102. Executions WL = without lock. Prearrangement locks application series SCS 86/... - SCM 86/....to order separately

DOWNLOAD CAD
Download
Download PDF
Characteristics table
Loading
Catalogues
Technical drawings
Certifications
