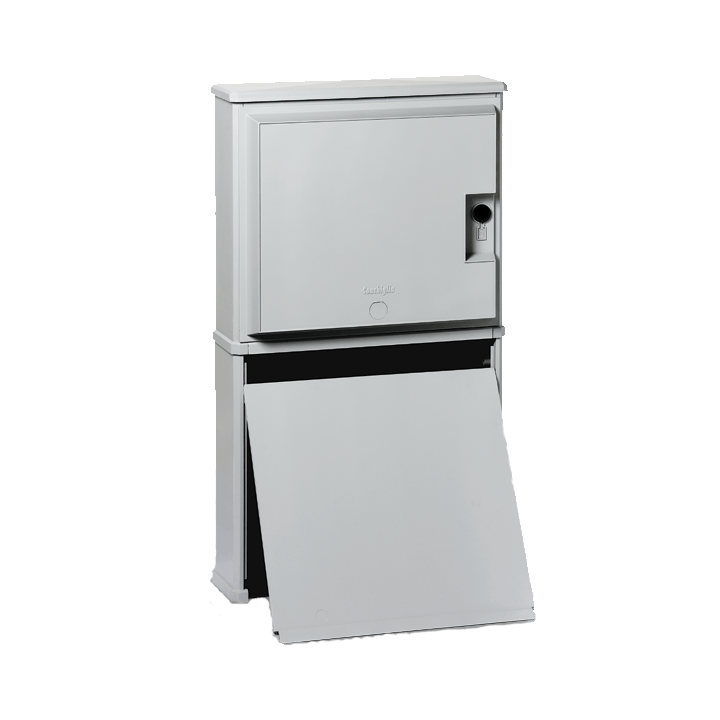

Fiberglass enclosure CV 714x660x271 -1compartment+zocc/without lock

CODE 073701930

Materials Moulded in SMC (fiberglass) - grey RAL 7040 color. Internal hinges in polyaryla-mide-based fiberglassreinforced thermoplastic resin (IXEF). External metal parts made of stainless steel or tropicalized steel painted grey and electrically insulated from the inside. Fiberglass lock body built into the door. Polyamide resin handle. Lock pivot pin in aluminium alloy. Rods and poles interiors made of steel with 321 GEOMET treatment. Characteristics Conforms to CEI EN 62208 standards. Rated insulation voltage Ui 690V. Hinged door in relief complete with cremone-type bolt operated by a retracting handle with three-point closing mechanism to ensure that the door adheres perfectly. Handle pre-engineered for profile cylinder to DIN 18252 standards with Y21 individually-keyed safety lock. Air intakes below and under the roof for natural internal ventilation. For self-standing floor installation with anchor frame (to be ordered separately). Cubicle supplied on pallet in standard pack containing four pieces. Base for inspection. Protection degree IP 44 in compliance with CEI EN 605299, IK 10 according to CEI EN 62262. The effective dimensions shown in the Table indicate the maximum space available for the equipment in compliance with the features specified by standard CEI EN 62208 (effective protected space).

Download PDF
Characteristics table
