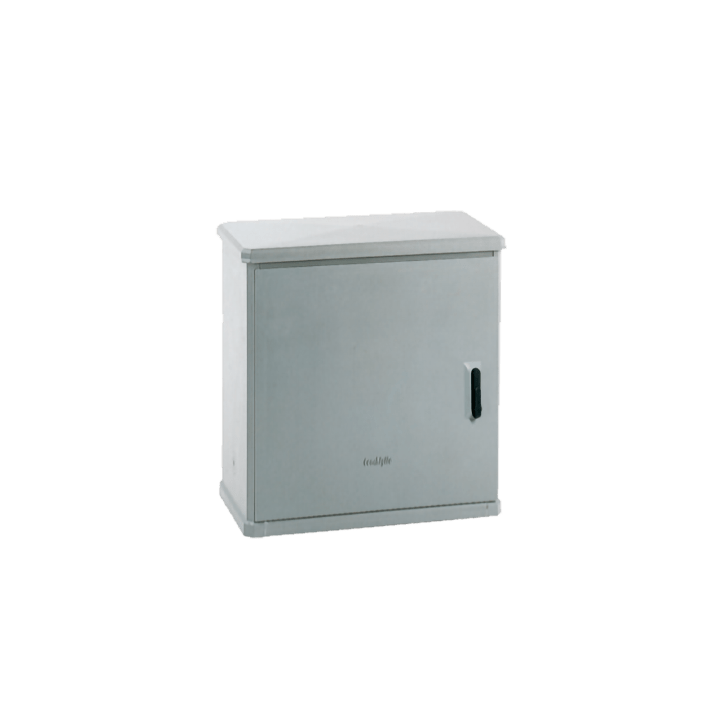

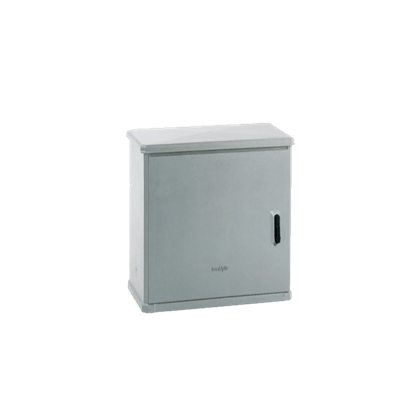

Fiberglass enclosure CV 546x570x424 - 1compartment / BASIC design

CODE 073510901
SIGN CVHT/0

Materials Moulded in SMC (fiberglass) - grey RAL 7040 color. Internal hinges in polyaryla-mide-based fiberglassreinforced thermoplastic resin (IXEF). External metal parts made of stainless steel or tropicalized steel painted grey and electrically insulated from the inside. Fiberglass lock body built into the door. Polyamide resin handle. Lock pivot pin in aluminium alloy. Rods and poles interiors made of steel with 321 GEOMET treatment. Characteristics Cubicle conforming to CEI EN 62208 standard. Rated insulation voltage Ui 690V. Hinged door complete with cremone-type bolt operated by a retracting handle with three-point closing mechanism to ensure that the door adheres perfectly. Handle pre-engineered for profile cylinder to DIN 18252 standards with Y21 individually-keyed safety lock. Air intakes below and under the roof for natural internal ventilation. Bottom wall equipped with inserts embedded molding brass for application equipment directly or through the mounting plate. The basic designs CVN/0-P is supplied on pallets in standard packs of 4 pieces. Installation accessories to be ordered separately. Protection degree IP 44 compliance CEI EN 60529, IK 10 according to CEI EN 62262. Standard version complete with lock with retractable lever. WL Version – Without lock and suitable exclusively for use of locks series SCS-SCM. The effective dimensions shown in the Table indicate the maximum space available for the equipment in compliance with the features specified by standard CEI EN 62208 (effective protected space).
