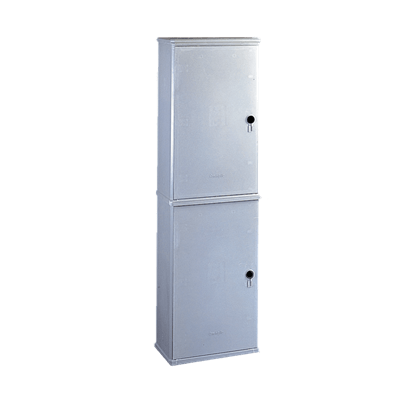

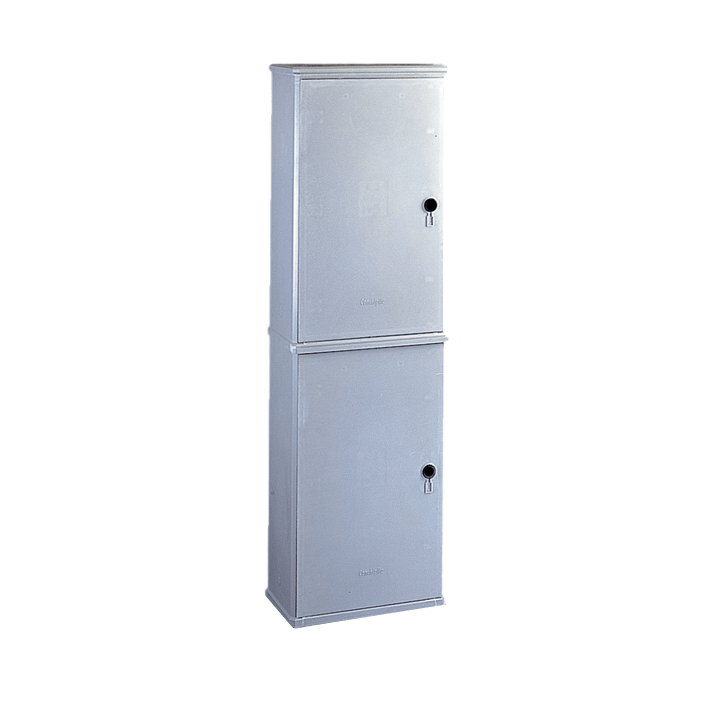

Fiberglass enclosure CV 546x1770x308 -2compartments / without lock

CODE 074109968

Materials Moulded in SMC (fiberglass) - grey RAL 7040 color. Internal hinges in polyaryla-mide-based fiberglassreinforced thermoplastic resin (IXEF). External metal parts made of stainless steel or tropicalized steel painted grey and electrically insulated from the inside. Fiberglass lock body built into the door. Polyamide resin handle. Lock pivot pin in aluminium alloy. Rods and poles interiors made of steel with 321 GEOMET treatment. Characteristics Cubicle conforming to CEI EN 62208 standard. Rated insulation voltage Ui 690V. Hinged door complete with cremone-type bolt operated by a retracting handle with three-point closing mechanism to ensure that the door adheres perfectly. Handle pre-engineered for profile cylinder to DIN 18252 standards with Y21 individually-keyed safety lock. Air intakes below and under the roof for natural internal ventilation. Bottom wall equipped with inserts embedded molding brass for application equipment directly or through the mounting plate. For self-standing floor installation with anchor frame (to be ordered separately). Products BVT / TP and BVT / T-WLP define the battery supplied on pallets in standard packs of 4 pcs. Refer to the single cubicle forming the compartment when choosing the accessories Protection degree IP 44 in compliance CEI EN 60529, IK 10 according to CEI EN 62262. Standard version complete with lock with retractable lever. WL Version – Without lock and suitable exclusively for use of locks series SCS-SCM.
