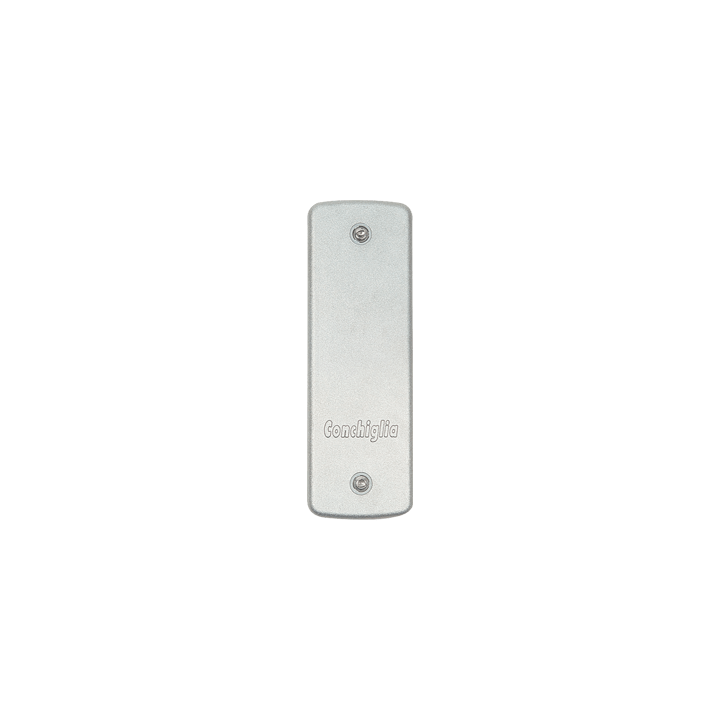

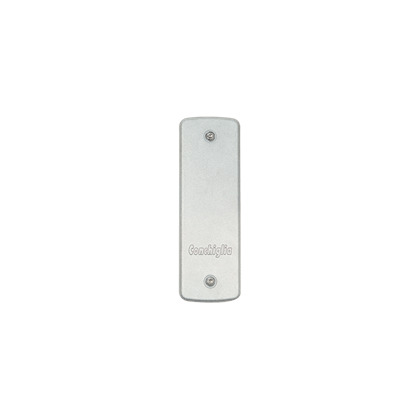

Door for Lamp-Post flat surfaces/Aluminium alloy/ slot 45x186

CODE 052300258
SIGN SMW/P

Materials Rectangular post door in pressure die-cast aluminium alloy UNI EN 1706AC - 46100DF with rounded edges. Minimum thickness 2.5 mm. Surfaces subjected to metal grit blasting treatment. Bracket fastening screws made of AISI 304 stainless steel. Rust prevention in the part where the bracket fastening screws turns, with thermoplastic sleeve. Polyurethane foam seal able to withstand the weather conditions and UV solar radiation. Characteristics For flat surfaces with over 80mm side measurement. For 45 x 186 hatches with semi-rounded ends.. Used with MMW-MGN-MVV-MGV series junction boxes with double insulation (for diameters above 133 mm). Bracket fastening screws with special hemispherical triangular shaped heads and semi-rounded sides (trademark application pending), and tightened with the special supplied key. Protection degree IP 54 in compliance with CEI EN 60529, IK 10 according to CEI EN 62262.

DOWNLOAD CAD
Download
Download PDF
Characteristics table
