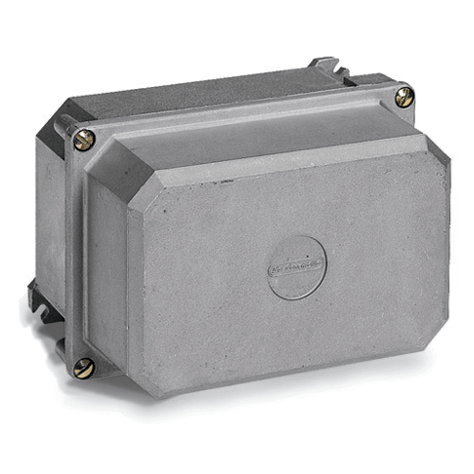

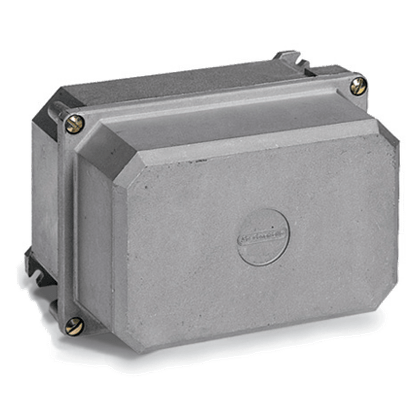

Derivation box wall install./aluminium alloy - 260x247x105

CODE 042500009
SIGN RP50

Materials UNI EN 1706AC - 46100DF die-cast aluminium alloy. Characteristics Surfaces treated on the inside and outside with RAL 7000 grey epoxy paint. The cables enter the boxes through fairleads, cable glands, pipe inlets or conical couplings for multipolar cables (available on request). For outdoor and indoor use; fixed to the wall with nails or expansion plugs on external feet which can be moved to obtain the best position even on irregular surfaces. Applications For overhead or underground networks with uni-multipolar power distribution cables; for metering, control, monitoring and signalling panels; for telephone connections; for powering and power factor correction equipment for the projectors used in large area lightin g systems; connections to temporary users. Protection degree for types RP 20÷35A IP 55 in compliance with CEI EN 60529 and IK 09 according to CEI EN 50102; for types RP 50÷1600 IP 55 in compliance with CEI EN 60529, IK 10 according to CEI EN 50102

DOWNLOAD CAD
Download
Download PDF
Characteristics table
