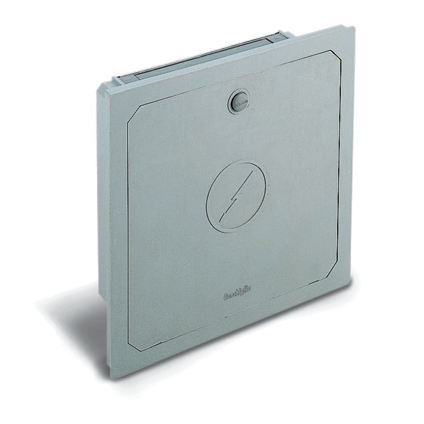

Box for recessed installation-Fiberglass 435x435 - empty

CODE 075200006
SIGN CPD/C

Materials Moulded in SMC (fiberglass), grey RAL 7040 color. Characteristics Snap-fit hinged cover removable when open. Galvanized steel shanks to fix in the wall. Internal ventilation through cover perimeter. Cover lock: CPD - CPE types: with triangular key. CPF types: with safety lock opened with a 630-type pin key. CPEE types: with safety lock opened with a Y21-type key and cover hinged on the outside. Protection degree IP 43 in accordance with CEI EN 60529, IK 10 according to CEI EN 50102. Versions /C: featuring two windows opposite each other closed by flaps in thermoplastic material with pre-bored holes for routing cables. Versions /D-DA: featuring two windows opposite each other, the top one closed by a door in thermoplastic material with pre-cut break-through holes for routing cables and the lower one complete with open-window cone connection, or V-cone with openable cover complete with fairleads

DOWNLOAD CAD
Download
Download PDF
Characteristics table
